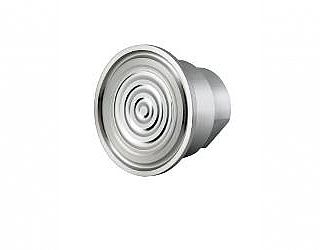

מד לחץ אנלוגי דיאפרגמות מופרדות - MGS-9-AL

דיאפגרמות מפרידות לתעשיית המזון MGS9-AL
לחץ עבודה מקסימלי : 40 BAR
טמפרטורה מקסימלית : 120 C °
חומר מבנה: נירוסטה 316
מילוי שמן מינרלי מאושר FDA
חיבורים: Tri-clamp: 1" ,1 1/2" ,2" ,2 1/2"
Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm is welded to the upper body, to ensure separation of the filling fluid from the process medium. Faced diaphragm position enables deep cleaning of the surface while the quick-connection Clamp enables frequent removal from the process during sterilization and cleaning operations, a common requirement in the food processing industry.
