מד זרימה קלפה - TSK

  מד/משדר/ זרימה לנוזלים

מבנה קשיח לעבודה מאומצת

נירוסטה

תחום מים עד: 1000 lıt/min

טמפ' מקסימום : °C 300

חיבור : עד DN500

יציאה: אנלוגית 4-20mA,HART,

, Fieldbus,Profibus

אופציה: מבנה פוליפרופילן או PTFE

לתעשיית הכימיה

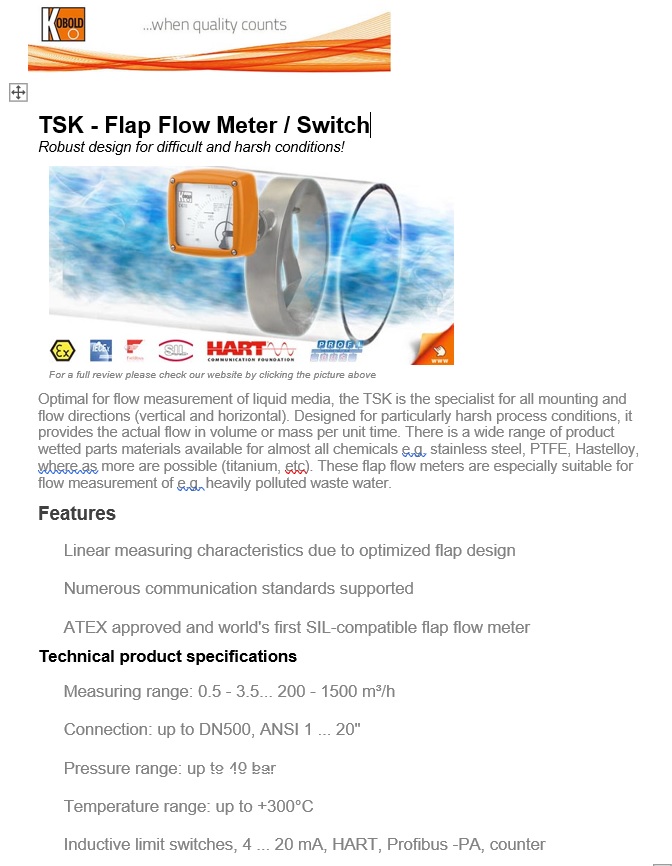

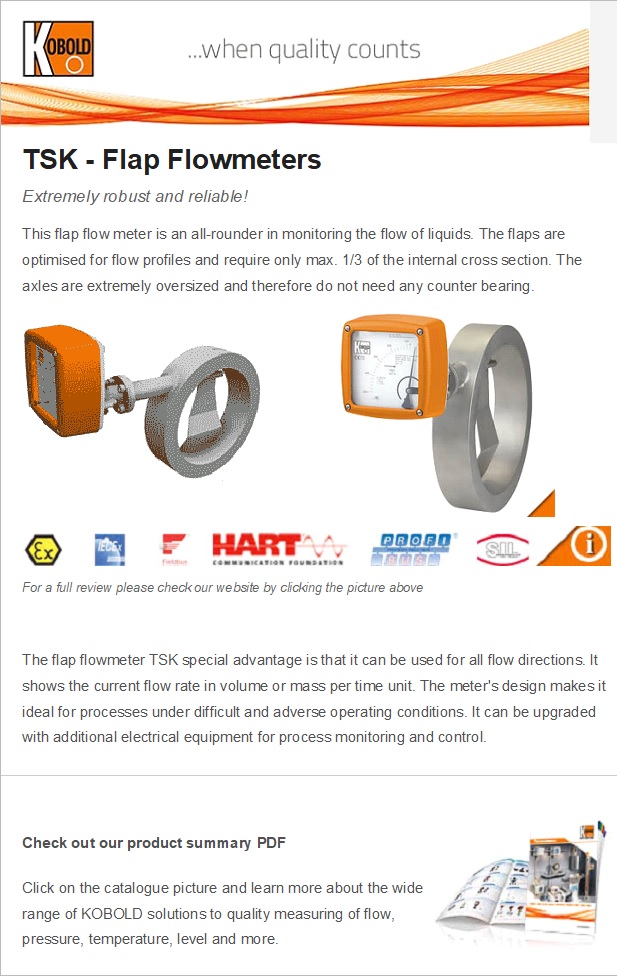

 Modern Flap Flowmeters

tskACCURATE, RELIABLE AND ROBUST

MANUFACTURED BY KOBOLD MESSRING GMBH

For more than 40 years, we have led the way.

We do not simply mount a flap into a piece of pipe.

Our flaps are optimised for flow profiles and therefore need only 1/3rd of the cross sectional area. The shafts are so robust and the transmission to display so reliable that we do not need a counter bearing.

This is now officially confirmed - TSK from KOBOLD are the world’s first SIL-compatible flap flow meters.

All world-wide established communication standards are available as well. All features combined make the TSK flap flow meter an all-rounder in monitoring of liquid flows in nominal pipe sizes up to 500 mm and process temperatures from -40 °C to +300 °C

EVERYTHING IS INSIDE!
