מד זרימה מסוג גלגלי-שיניים קומפקטי
עד 40 lit/min
מבנה: נירוסטה
לחץ מקסימלי : 64 BAR
טמפרטורה מקסימלית : 80 ºC
דיוק: 1%± מהמדידה
גרסא למדידת צריכת דלק
עם רגש PT-100 מובנה (פיצוי טמ"פ)
יציאה: פולסים
Oval Wheel Flowmeter in Mini Format
Another space miracle from Kobold for OEM customers. With an all stainless steel body and temperature measurement for fuel consumption, the DOE offers different pulse output options including one to measure pulsating flow from e.g. peristaltic pumps.
The DOE measures different viscosities upto 1000 cP with an accuracy of +/- 1% of reading under reference conditions
|

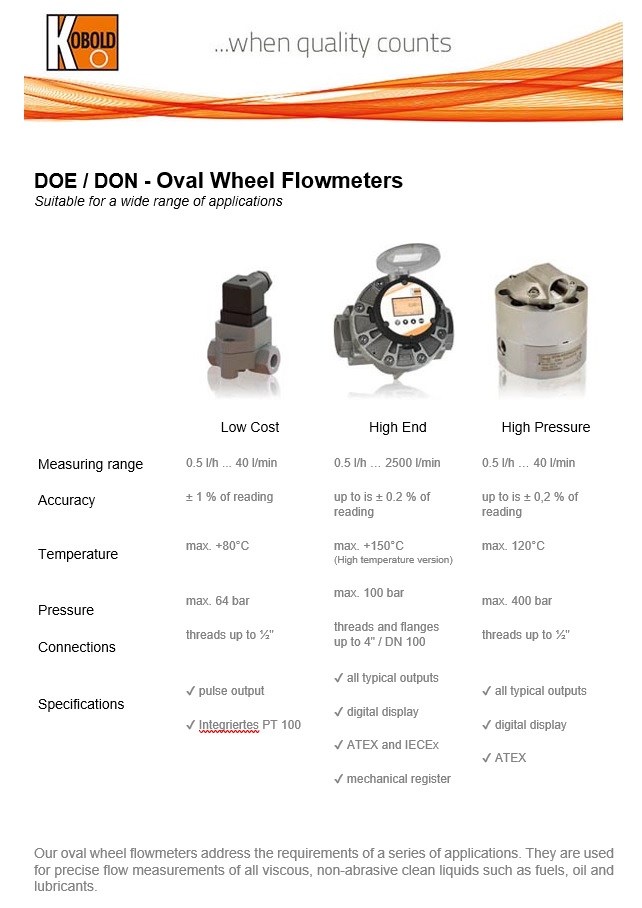

DOE - Oval wheel flowmeter
Precise
measurement of low and high viscous liquids
Via magnets embedded in its oval wheels our DOE transmits
flow values to control and monitoring systems. The meter can be used with a
wide range of media and chemicals. The aluminium version in particular is
suitable for applications with motor and heating fuels or lubricating
liquids.
Application:
Exact determination of fuel consumption
|

|
A click on the
picture will take you directly to more information on our website
A common application example is the measurement of diesel
engines' fuel consumption in means of transport or conventional power
plants. On each fuel pipe (supply and return) one DOE is installed. The
differential flow computer ZFC determines the actual fuel consumption.
Furthermore, temperature sensors (for example our MWD) are utilised to
increase the accuracy of the measurement. The flow computer can compensate
the effect of fuel expansion due to increasing temperatures.
The following advantages can be summarised:
✔ Compact measuring device
✔ Exact, even with significant temperature differences between
supply and return
✔ Applicable in rough conditions (rain, snow, salty
atmosphere)
✔ Durable at reasonable costs
|
|
