מתמר מוליכות -ecoTRANS LF01/02

 מתמר מוליכות לפס דין

 יציאה אנלוגיות מבודדת:  4-20 mA או 0-10V

כניסת רגש PT-100  או PT-1000

 יציאה נוספת: מגע יבש מתחלף בדגם ecoTRANS Lf /02

אפשרות תכנות כל הפרמטרים דרך תוכנה ידידותית

תעודת כיול מהיצרן

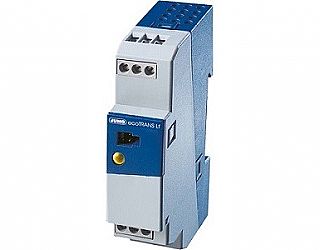

The conductivity transmitter JUMO ecoTRANS Lf 01/02 measures the conductivity of fluids in conjunction with conductive conductivity measuring cells.

The devices are designed for applications in general water management.

The JUMO ecoTRANS Lf 01 has a freely programmable analog actual value output.

The possible applications of the device include, for instance, the function as a low-cost universal transmitter.

Der JUMO ecoTRANS Lf 02 is equipped with a change-over relay.

With the aid of a teach-in plug, the JUMO ecoTRANS Lf 02 is capable of learning the switching point of the integrated relay.

Typical applications are systems for fresh water monitoring and water treatment, reverse osmosis plants, ion exchanger plants, condensate monitoring and cooling water control.

The devices are programmed through the setup connection (notebook / PC) using the setup program:

- Calibration of the cell constant

- Calibration of the temperature coefficient

- Configuration of parameters: measuring range, reference temperature, cell constant, temperature, switching point, continuous output, and others
